Compression Load Cell TC series
Robot-cable
Robot-cable
TC-BSR(T)☐☐KN-G3
TEDS RoHS
TC-BSR is a compatible with high load of 10 kN · 20 kN · 50 kN while compact (φ 21, height 10 mm).
Made in Japan
- Features
- high load 10KN, 20kN, 50kN, low cost, small size
Specifications
| Model | Unit | Rated Capacity (R.C.) | ||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| TC-BSR(T)☐☐KN-G3 | N | 0.5 | 1 | 1.5 | 2 | 3 | 5 | 10 | 20 | 50 | 100 | 200 | 500 | |
| kN | 1 | 2 | 3 | 5 | 10 | 20 | 30 | 50 | 100 | 200 | 300 | 500 | 1000 | |
| Rated Capacity (R.C.) | Natural Frequency | Weight (g) | |
|---|---|---|---|
| 10kN | 1.02tf | 98kHz | 21g |
| 20kN | 2.04tf | 98kHz | 21g |
| 50kN | 5.10tf | 46kHz | - |
| Model | TC-BSR(T)☐☐KN-G3 |
|---|---|
| Safe Overload Rating | 120%R.C. |
| Rated Output (R.O.) | 1mV/V ±50%(10kN) 1.5mV/V ±50%(20kN, 50kN) |
| Linearity | 1.0%R.O.(10kN, 50kN) 2.0%R.O.(20kN) |
| Hysteresis | 1.0%R.O. |
| Repeatability | 1.0%R.O. |
| Input Terminal Resistance | 350Ω±5% |
| Output Terminal Resistance | 350Ω±5% |
| Safe Excitation Voltage | 7V(10kN, 20kN) 5V(50kN) |
| Insulation Resistance | 1000MΩ or more (DC50V) |
| Compensated Temperature Range | 0 - 50℃ |
| Permissible Temperature Range | -10 - 60℃ |
| Temperature Effect on Zero Balance | 0.5%R.O./10℃ |
| Temperature Effect on Output | 0.5%R.C./10℃ |
| Cable | φ3mm 6-core robot cable 3 m with bare lead wire |
| Body material | Stainless steel |
| TEDS | Built-in |
| Environmental compliance | RoHS 10 |

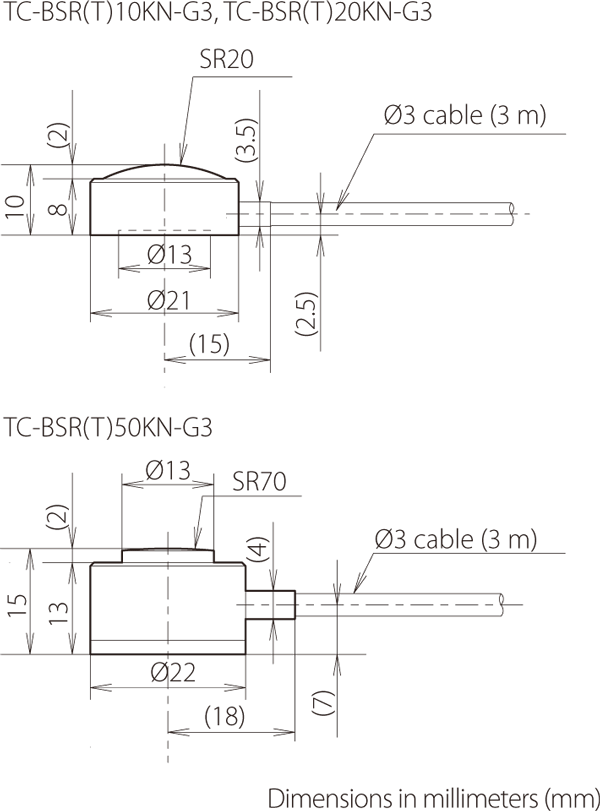

Outline Dimensions
