Compression Load Cell TC series
Robot-cable
Robot-cable
TC-USR(T)☐☐N-G3
TEDS RoHS
In order to make measurement with high precision even at low capacity, a strain relief plate with a linear beam structure different from other load cells is used.
Made in Japan
- Features
- Ultra low capacity · With stopper · Screw hole · Low temperature effect
Specifications
| Model | Unit | Rated Capacity (R.C.) | ||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| TC-USR(T)☐☐N-G3 | N | 0.5 | 1 | 1.5 | 2 | 3 | 5 | 10 | 20 | 50 | 100 | 200 | 500 | |
| kN | 1 | 2 | 3 | 5 | 10 | 20 | 30 | 50 | 100 | 200 | 300 | 500 | 1000 | |
| Rated Capacity (R.C.) | Natural Frequency | Weight (Approx.) | Type | |
|---|---|---|---|---|
| 0.5N | 51gf | 0.5kHz | 12g | TC-USR(T)30-G3 |
| 1N | 102gf | 0.8kHz | 12g | TC-USR(T)30-G3 |
| 1N | 102gf | 6.7kHz | 2.5g | TC-USR(T)17-G3 |
| 2N | 204gf | 5.6kHz | 2.5g | TC-USR(T)17-G3 |
| 5N | 510gf | 6.7kHz | 2.5g | TC-USR(T)17-G3 |
| 1N | 102gf | 7.1kHz | 5g | TC-USR(T)23-G3 |
| 2N | 204gf | 5.5kHz | 5g | TC-USR(T)23-G3 |
| 5N | 510gf | 7.5kHz | 5g | TC-USR(T)23-G3 |
| 10N | 1.02kgf | 6.8kHz | 15g | TC-USR(T)29-G3 |
| 20N | 2.04kgf | 7.5kHz | 35g | TC-USR(T)29-G3 |
| 50N | 5.1kgf | 9.5kHz | 35g | TC-USR(T)29-G3 |
| 100N | 10.2kgf | 15kHz | 35g | TC-USR(T)29-G3 |
| 200N | 20.4kgf | 14kHz | 58g | TC-USR(T)34-G3 |
| 500N | 51kgf | 14kHz | 58g | TC-USR(T)34-G3 |
| 1kN | 102kgf | 15kHz | 58g | TC-USR(T)34-G3 |
| 2kN | 204kgf | 16kHz | 65g | TC-USR(T)34-G3 |
| Model | TC-USR(T)☐☐N-G3 |
|---|---|
| Safe Overload Rating | 150%R.C. 120%R.C.(TC-USR(T)30-G) |
| Overload limit | 300%R.C. 500%R.C.(TC-USR(T)17/23-G) |
| Rated Output (R.O.) | 0.5 mV/V or higher 0.75 mV/V or higher (TC-USR(T)29-20N-G3 to TC-USR(T)29-100N-G3 and TC-USR(T)34-G3) about 0.4mV/V (TC-USR(T)17-1N-G3,TC-USR(T)23-1N-G3) |
| Linearity | 0.1%R.O. 0.3%R.O.(TC-USR(T)17/23-G) |
| Hysteresis | 0.1%R.O. 0.3%R.O.(TC-USR(T)17/23-G) |
| Repeatability | 0.1%R.O. 0.3%R.O.(TC-USR(T)17/23-G) |
| Safe Excitation Voltage | 6V |
| Input Terminal Resistance | 420±20Ω 390±20Ω (TC-USR(T)23-2N-G3, TC-USR(T)23-5N-G3, TC-USR(T)29-10N-G3 to TC-USR(T)29-100N-G3, TC-USR(T)34-200N-G3 to TC-USR(T)34-2KN-G3) 370±20Ω (TC-USR(T)17-1N-G3, TC-USR(T)23-1N-G3) |
| Output Terminal Resistance | 350±20Ω |
| Insulation Resistance | 1000MΩ or more (DC50V) |
| Compensated Temperature Range | 0℃ - 60℃ |
| Permissible Temperature Range | -10℃ - 60℃ -5℃ - 70℃(TC-USR(T)30-G) |
| Temperature Effect on Zero Balance | 0.3%R.O./10℃ 0.5%R.O./10℃ (TC-USR(T)17-1N-G3, TC-USR(T)23-1N-G3) |
| Temperature Effect on Output | 0.1%R.O./10℃ 0.3%R.O./10℃(TC-USR(T)30-G) |
| Cable | φ3mm 6-core robot cable 3 m with bare lead wires |
| Overload protection | Structural stopper |
| Body material | Stainless steel Aluminium (TC-USR(T)30-G3/ TC-USR(T)17,23,29-10N-G3) |
| TEDS | Built-in |
| Environmental compliance | RoHS 10 |

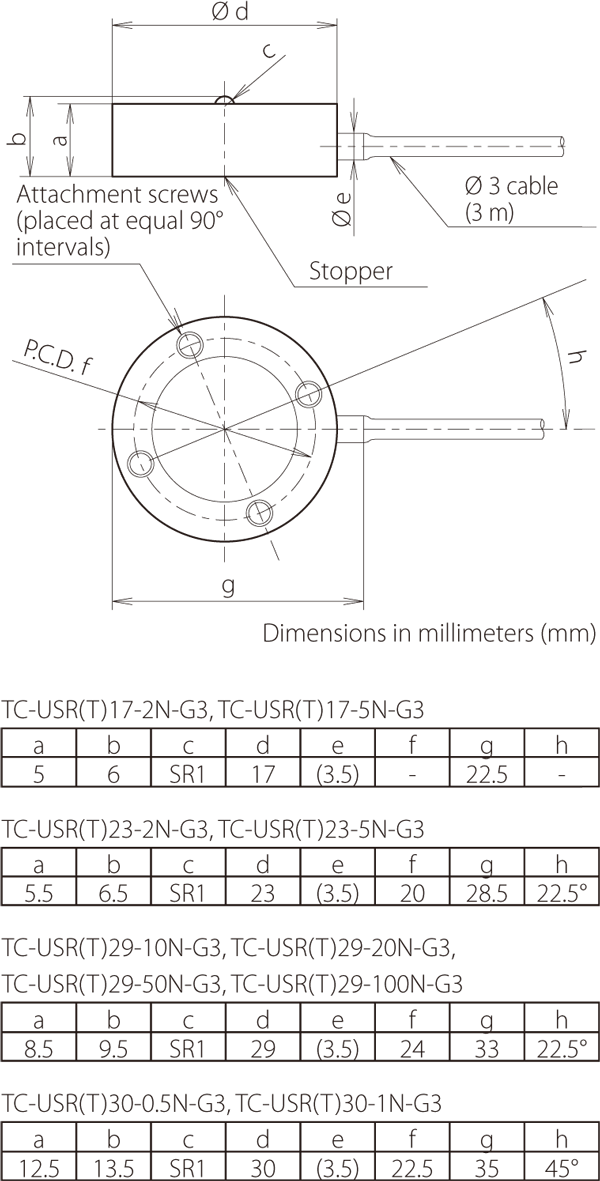

Outline Dimensions
