IEPE (integral electronic piezoelectric) Accelerometer
730ZT / 731ZT / 730ZW
TEDS:730ZT/731ZT- Features
-
- Cubic Tri-axial type
- The World Smallest 10 mm cubic TEDS capable accelerometer
- Light weight 4.4 g (730ZT/731ZT), 4.9 g (730ZW)
- Low noise floor < 20μVrms (730ZT)
- Waterproof type(730ZW)
730ZT / 731ZT

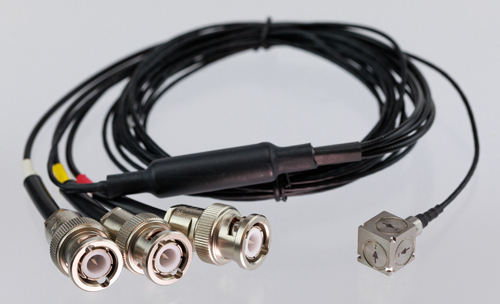

730ZW
Specifications
| Model | 730ZT | 731ZT | 730ZW |
|---|---|---|---|
| Sensitivity (mV/m/s2) | 1.0±10% | 10.0±10% | 1.0±10% |
| Transverse Sensitivity (max) | < 5% | ||
| Noise Floor (max) | < 20μVrms | < 40μVrms | < 20μVrms |
| Operating Temperature range | -50 deg C to 120 deg C | -50 deg C to 110 deg C | -50 deg C to 120 deg C |
| Frequency Response (±3dB) | 0.5Hz to 15kHz (X, Y), 0.5Hz to 20kHz (Z) |
0.5Hz to 10kHz (X, Y), 0.5Hz to 18kHz (Z) |
0.5Hz to 15kHz (X, Y), 0.5Hz to 20kHz (Z) |
| Resonance Frequency | > 55kHz (Z) | ||
| Measurement Range (m/s2) | ±5,000 | ±450 | ±5,000 |
| Max. operational shock (m/s2) | < 30,000 | ||
| Output Impedance | < 100ohm | < 500ohm | < 100ohm |
| Ground | Case ground | ||
| Cables | Proprietary cable | 3.3m(installed) | |
| Connector | CZ664 | - | |
| Material | Titanium | ||
| Dimension (W × H × D) | 10mm × 10mm × 10mm (Connector excluded) | ||
| Weight | Approx. 4.4g | Approx. 4.9g | |
| Standard Accessories |
|
|
|

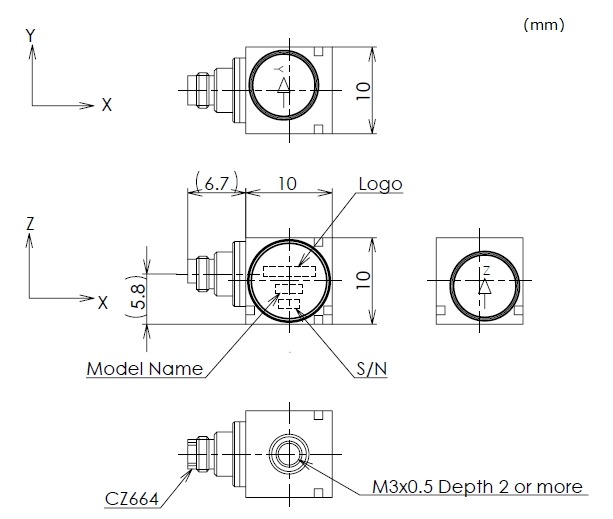

Outline Dimensions
730ZT / 731ZT

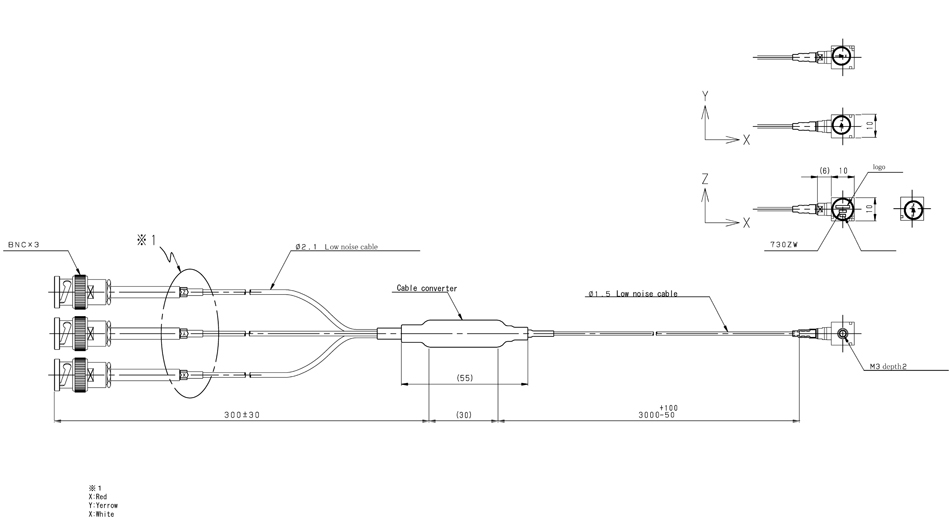

730ZW
Accessories

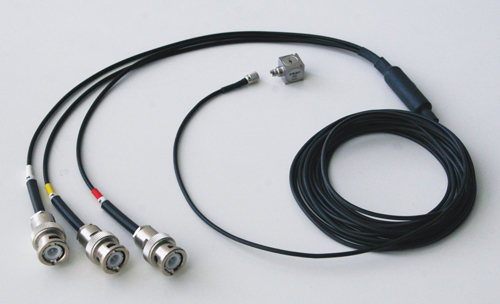

Dedicated Cable
730ZT / 731ZT

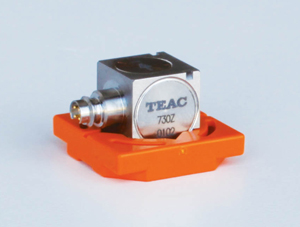

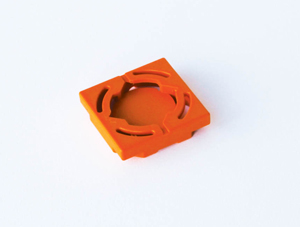

mounting clip PS-730Z

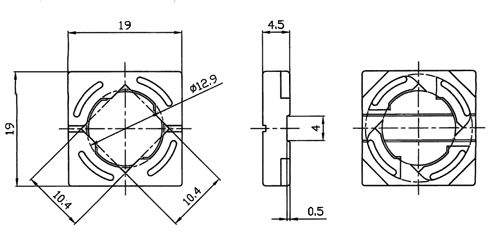

Outline Dimensions
