Compression Load Cell TC series
Robot-cable
Robot-cable
TC-MFSR(T)☐☐N-G
TEDS RoHS
It is a small load cell with a flat load point.Ideal for pressurizing control of bonding machine.
Made in Japan
- Features
- small type, flat load point
Specifications
| Model | Unit | Rated Capacity (R.C.) | ||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| TC-MFSR(T)☐☐N-G | N | 0.5 | 1 | 1.5 | 2 | 3 | 5 | 10 | 20 | 50 | 100 | 200 | 500 | |
| kN | 1 | 2 | 3 | 5 | 10 | 20 | 30 | 50 | 100 | 200 | 300 | 500 | 1000 | |
| Rated Capacity (R.C.) | Natural Frequency | Weight (g) | |
|---|---|---|---|
| 20N | 2.04kgf | 23kHz | 2g |
| 50N | 5.1kgf | 23kHz | 2g |
| Model | TC-MFSR(T)☐☐N-G |
|---|---|
| Safe Overload Rating | 120%R.C. |
| Rated Output (R.O.) | approx. 1mV/V |
| Linearity | 0.5%R.O. |
| Hysteresis | 0.5%R.O. |
| Repeatability | 0.3%R.O. |
| Safe Excitation Voltage | 6V |
| Input Terminal Resistance | 350±20Ω |
| Output Terminal Resistance | 350±20Ω |
| Insulation Resistance | 1000MΩ or more (DC50V) |
| Compensated Temperature Range | 0 - 60℃ |
| Permissible Temperature Range | -10 - 80℃ |
| Temperature Effect on Zero Balance | 2%R.O./10℃ |
| Temperature Effect on Output | 1%R.C./10℃ |
| Cable | φ2mm 6-core robot cable 3 m with bare lead wires |
| Body material | Beryllium copper |
| TEDS | Built-in |
| Environmental compliance | RoHS 10 |

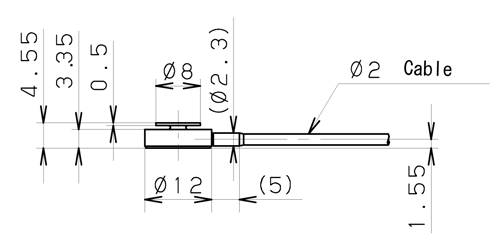

Outline Dimensions
