Tension / Compression Load Cell
TU-GR☐☐KN-G
RoHS
Made in Japan
- Features
- Shear beam · Center hole type
Specifications
| Model |
Unit |
Rated Capacity (R.C.) |
| TU-GR☐☐KN-G |
N |
0.5 |
1 |
1.5 |
2 |
3 |
5 |
10 |
20 |
50 |
100 |
200 |
500 |
|
| kN |
1 |
2 |
3 |
5 |
10 |
20 |
30 |
50 |
100 |
200 |
300 |
500 |
1000 |
| Rated Capacity (R.C.) |
Natural Frequency |
Weight (Approx.) |
| 5kN |
510kgf |
3.5kHz |
2.2kg |
| 10kN |
1.02tf |
5kHz |
2.2kg |
| 20kN |
2.04tf |
7.6kHz |
2.2kg |
| 50kN |
5.1tf |
8.8kHz |
3.7kg |
| 100kN |
10.2tf |
7kHz |
8.5kg |
| 200kN |
20.4tf |
5.6kHz |
20kg |
| Model |
TU-GR☐☐KN-G |
| Safe Overload Rating |
150%R.C. |
| Rated Output (R.O.) |
2mV/V ±1% |
| Linearity |
0.05%R.O. (5kN - 200kN) |
| Hysteresis |
0.1%R.O. (5kN - 200kN) |
| Repeatability |
0.03%R.O. (5kN - 200kN) |
| Safe Excitation Voltage |
20V |
| Input Terminal Resistance |
350Ω±1% |
| Output Terminal Resistance |
350Ω±1% |
| Insulation Resistance |
1000MΩ or more (DC50V) |
| Compensated Temperature Range |
-10℃ - 60℃ |
| Permissible Temperature Range |
-30℃ - 80℃ |
| Temperature Effect on Zero Balance |
0.05% R.O./10℃ |
| Temperature Effect on Output |
0.1% R.C./10℃ |
| Cable |
φ8, Shielded 4-Conductor wire, 5m direct connection |
| Body material |
Alloy Tool Steel |
| Accessories |
Eye bolt |

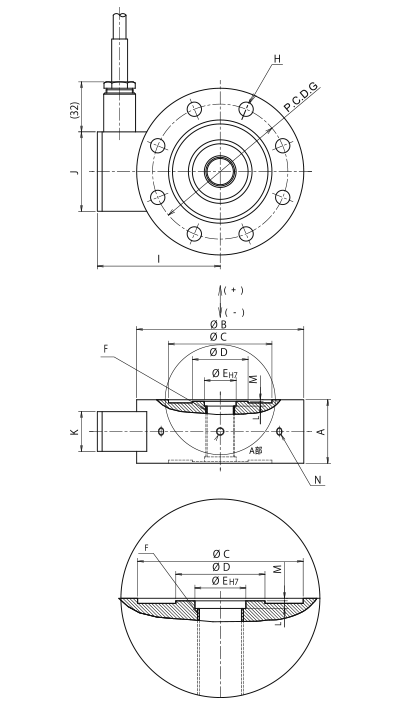

Outline Dimensions
| Rated Capacity |
A |
φB |
φC |
φD |
φE |
F |
φG |
H |
I |
J |
K |
L |
M |
N |
| 5kN |
510kgf |
40 |
105 |
65 |
35 |
20 |
M18×1.5 |
85 |
8-φ9 |
77 |
50 |
25 |
3 |
1 |
- |
| 10kN |
1.02tf |
40 |
105 |
65 |
35 |
20 |
M18×1.5 |
85 |
8-φ9 |
77 |
50 |
25 |
3 |
1 |
- |
| 20kN |
2.04tf |
40 |
105 |
65 |
35 |
20 |
M18×1.5 |
85 |
8-φ9 |
77 |
50 |
25 |
3 |
1 |
- |
| 50kN |
5.1tf |
50 |
120 |
74 |
40 |
26 |
M24×1.5 |
95 |
8-φ11 |
86 |
50 |
25 |
4 |
1 |
- |
| 100kN |
10.2tf |
65 |
160 |
100 |
60 |
40 |
M36×2 |
130 |
8-φ18 |
108.5 |
55 |
30 |
5 |
1 |
- |
| 200kN |
20.4tf |
80 |
220 |
140 |
80 |
55 |
M50×2 |
180 |
8-φ26 |
140.5 |
55 |
30 |
5 |
1 |
2-M8 |
