Tension / Compression Load Cell

TU-MBR(T)☐☐N-G3

TEDS RoHS CE UKCA

Tension measurement, In-line load management

Made in Japan

Features
Ultra Compact, Safe overload of 500%

TU-MBR(T)☐☐N-G3
Load button (Option)

TU-MBR(T)☐☐N-G3

Specifications

Model Unit Rated Capacity (R.C.)
TU-MBR(T)☐☐N-G3 N 0.5 1 1.5 2 3 5 10 20 50 100 200 500
kN 1 2 3 5 10 20 30 50 100 200 300 500 1000

Conversion Table to SI Units
Deflection at the rated capacity.

Rated Capacity (R.C.) Natural Frequency Weight (g)
2N 204gf 1.47kHz 5g
5N 510gf 2.45kHz 5g
10N 1.02kgf 2.81kHz 5g
20N 2.04kgf 2.92kHz 5g
Model TU-MBR(T)☐☐N-G3
Maximum Load Limit 500%R.C.
Rated Output (R.O.) approx. 0.4mV/V
Linearity 0.1%R.O.
Hysteresis 0.1%R.O.
Repeatability 0.1%R.O.
Safe Excitation Voltage 5V
Input Terminal Resistance 350Ω±5%
Output Terminal Resistance 350Ω±5%
Insulation Resistance 1000MΩ or more (DC50V)
Compensated Temperature Range -10 - 60℃
Operating Temperature Range -20 - 70℃
Temperature Effect on Zero Balance 1%R.O./10℃
Temperature Effect on Output 1%R.C./10℃
Cable Direct connection with φ2 4-core shielded robot cable for 3 m (to built-in TEDS part) φ3 6-core cable lead about 170mm from built-in TEDS part
Mounting 2×M3 tap on bottom(Fixing bolts used for the 2×M3 should be 4.5mm or less in depth.)
Environmental Regulations RoHS 10
Body Material Aluminium
TEDS inside cable lead
Others
  • Fixing bolts used for the 2-M3 should be 4.5mm or less in depth. If more than 4.5mm is used, it may push up the sensing section of the unit and cause damage
  • When installing the unit, make sure that no excessive force is applied to the base of the cable. Otherwise, this may cause measurement error or damage.

Outline Dimensions

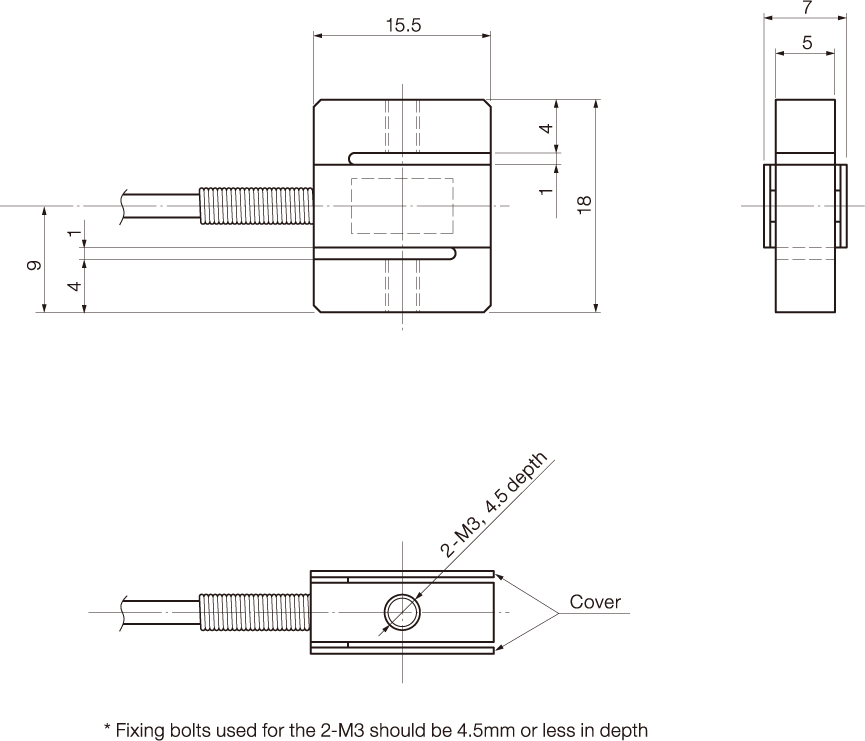

TU-MBR(T)☐☐N-G3 Outline Dimensions

Units:mm
