Compression Load Cell TC series
Robot-cable
Robot-cable
TC-AR(T)☐☐KN-G6
TEDS RoHS
Compact and lightweight makes it easy to install on existing equipment. In addition, since it is made of stainless steel (SUS630), it can be widely applied as a detector for devices
Made in Japan
- Features
- Compact, lightweight, corrosion-resistant, low-cost
Specifications
| Model | Unit | Rated Capacity (R.C.) | ||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| TC-AR(T)☐☐KN-G6 | N | 0.5 | 1 | 1.5 | 2 | 3 | 5 | 10 | 20 | 50 | 100 | 200 | 500 | |
| kN | 1 | 2 | 3 | 5 | 10 | 20 | 30 | 50 | 100 | 200 | 300 | 500 | 1000 | |
| Rated Capacity (R.C.) | Natural Frequency | Weight (Approx.) | |
|---|---|---|---|
| 20kN | 2.04tf | 23kHz | 0.8kg |
| 30kN | 3.06tf | 23kHz | 0.8kg |
| Model | TC-AR(T)☐☐KN-G6 |
|---|---|
| Safe Overload Rating | 150%R.C. |
| Rated Output (R.O.) | 2mV/V ±1% |
| Linearity | 0.1%R.O. |
| Hysteresis | 0.15%R.O. |
| Repeatability | 0.1%R.O. |
| Safe Excitation Voltage | 15V |
| Input Terminal Resistance | 425±50Ω |
| Output Terminal Resistance | 350±5Ω |
| Insulation Resistance | 1000MΩ or more (DC50V) |
| Compensated Temperature Range | -10℃ - 70℃ |
| Permissible Temperature Range | -30℃ - 80℃ |
| Temperature Effect on Zero Balance | 0.1%R.O./10℃ |
| Temperature Effect on Output | 0.1%R.O./10℃ |
| Cable | φ6mm 6-core robot cable 5m direct connection |
| Body material | Stainless Steel |
| TEDS | Built-in |
| Environmental compliance | RoHS 10 |

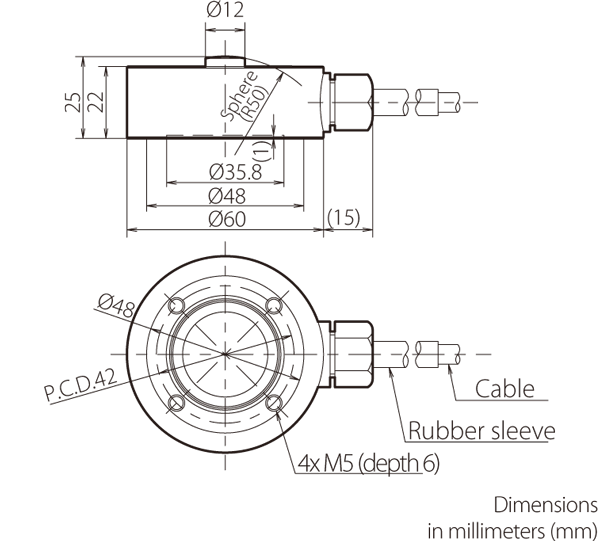

Outline Dimensions
| Rated Capacity (R.C.) | A | B | φC | D | φE | φF | G | H | R | |
|---|---|---|---|---|---|---|---|---|---|---|
| 20kN | 2.04tf | 25 | 22 | 60 | 15 | 12 | 42 | 4-M5 depth6 |
11 | 50 |
| 30kN | 3.06tf | 25 | 22 | 60 | 15 | 12 | 42 | 4-M5 depth6 |
11 | 50 |
