Compression Load Cell TC series
Robot-cable
Robot-cable
TC-LPR(T)☐☐N/KN-G6
TEDS RoHS
Load Button Removable thin load cell
Made in Japan
- Features
- It is thin and supports RoHS, and TEDS incorporation, a road button are removable
Specifications
| Model | Unit | Rated Capacity (R.C.) | ||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| TC-LPR(T)☐☐N/KN-G6 | N | 0.5 | 1 | 1.5 | 2 | 3 | 5 | 10 | 20 | 50 | 100 | 200 | 500 | |
| kN | 1 | 2 | 3 | 5 | 10 | 20 | 30 | 50 | 100 | 200 | 300 | 500 | 1000 | |
| Rated Capacity (R.C.) | Natural Frequency | Weight (Approx.) | |
|---|---|---|---|
| 500N | 51.0kgf | 2.5kHz | 250g |
| 1kN | 102kgf | 3.8kHz | 250g |
| 3kN | 306kgf | 7.3kHz | 250g |
| 5kN | 510kgf | Please contact us | |
| 10kN | 1.02tf | Please contact us | |
| Model | TC-LPR(T)☐☐N/KN-G6 |
|---|---|
| Safe Overload Rating | 120%R.C.(500N-3kN) 150%R.C.(5kN, 10kN) |
| Rated Output (R.O.) | 1mV/V ±10% |
| Linearity | 0.1%R.O.(500N-3kN) 0.3%R.O.(5kN, 10kN) |
| Hysteresis | 0.1%R.O.(500N-3kN) 0.3%R.O.(5kN, 10kN) |
| Repeatability | 0.05%R.O. |
| Safe Excitation Voltage | 15V(500N-3kN) 12V(5kN, 10kN) |
| Input Terminal Resistance | 382±10Ω |
| Output Terminal Resistance | 350±3.5Ω |
| Insulation Resistance | 1000MΩ or more (DC50V) |
| Compensated Temperature Range | -10 - 70℃ |
| Permissible Temperature Range | -30 - 80℃ |
| Temperature Effect on Zero Balance | 0.1%R.O./10℃ |
| Temperature Effect on Output | 0.1%R.C./10℃ |
| Cable | φ6mm 6-core robot cable 5m direct connection with bare lead wires |
| Accessory | Load button |
| TEDS | Built-in |
| Environmental compliance | RoHS 10 |

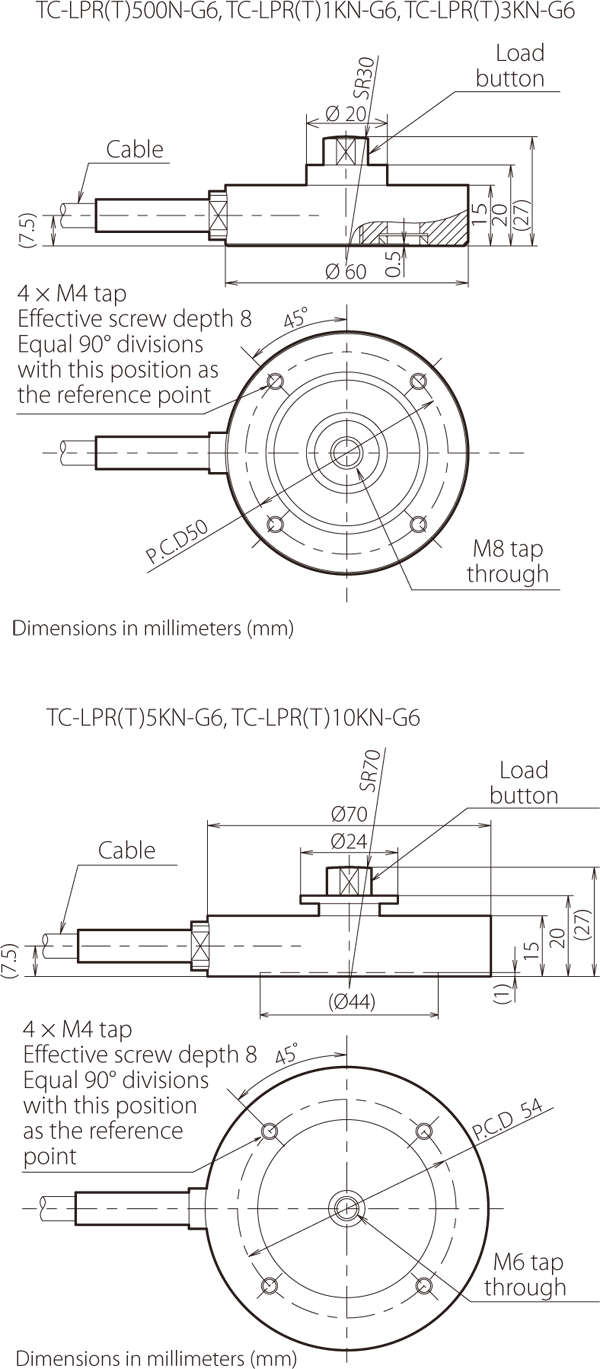

Outline Dimensions
