Tension / Compression Load Cell
Robot-cable
Robot-cable
TU-MXR2(T)☐☐N-G3
TEDS RoHS
TU-MXR2 is easy to mount it in a compact, low-capacity, pushing test machine.
Made in Japan
- Features
- Thin airtight structure · Compact · Lightweight · Coaxial beam type
Jig foe tightening(accessory)
Specifications
| Model | Unit | Rated Capacity (R.C.) | ||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| TU-MXR2(T)☐☐N-G3 | N | 0.5 | 1 | 1.5 | 2 | 3 | 5 | 10 | 20 | 50 | 100 | 200 | 500 | |
| kN | 1 | 2 | 3 | 5 | 10 | 20 | 30 | 50 | 100 | 200 | 300 | 500 | 1000 | |
| Rated Capacity (R.C.) | Natural Frequency | Weight (g) | |
|---|---|---|---|
| 10N | 1.02kgf | 2.2kHz | 9g |
| 20N | 2.04kgf | 3.0kHz | 9g |
| 50N | 5.10kgf | 5.2kHz | 10g |
| 100N | 10.2kgf | 8.0kHz | 10g |
| 200N | 20.4kgf | 6.6kHz | 21g |
| 500N | 51.0kgf | Please contact us | |
| Model | TU-MXR2(T)☐☐N-G3 |
|---|---|
| Rated Capacity(R.C) | 10, 20, 50, 100, 200, 500N |
| Safe Overload Rating | 120%R.C. |
| Maximum Safe Overload | 150%R.C. |
| Rated Output (R.O.) | 1.5mV/V ±30% |
| Linearity | 0.1%R.O. |
| Hysteresis | 0.1%R.O. |
| Repeatability | 0.1%R.O. |
| Safe Excitation Voltage | 8V |
| Input Terminal Resistance | 350Ω±2% |
| Output Terminal Resistance | 350Ω±2% |
| Insulation Resistance | 1000MΩ or more (DC50V) |
| Compensated Temperature Range | -10 - 45℃ |
| Permissible Temperature Range | -20 - 60℃ |
| Temperature Effect on Zero Balance | 0.5%R.O./10℃ |
| Temperature Effect on Output | 0.5%R.C./10℃ |
| Cable | 3m direct connection with bare lead wires, φ2 4-core shielded cable between this unit and TEDS, φ3 6-core shielded cable between TEDS and lead(about 15cm) |
| TEDS | Built-in cable tip |
| Environmental compliance | RoHS 10 |
| Body material | Aluminium |

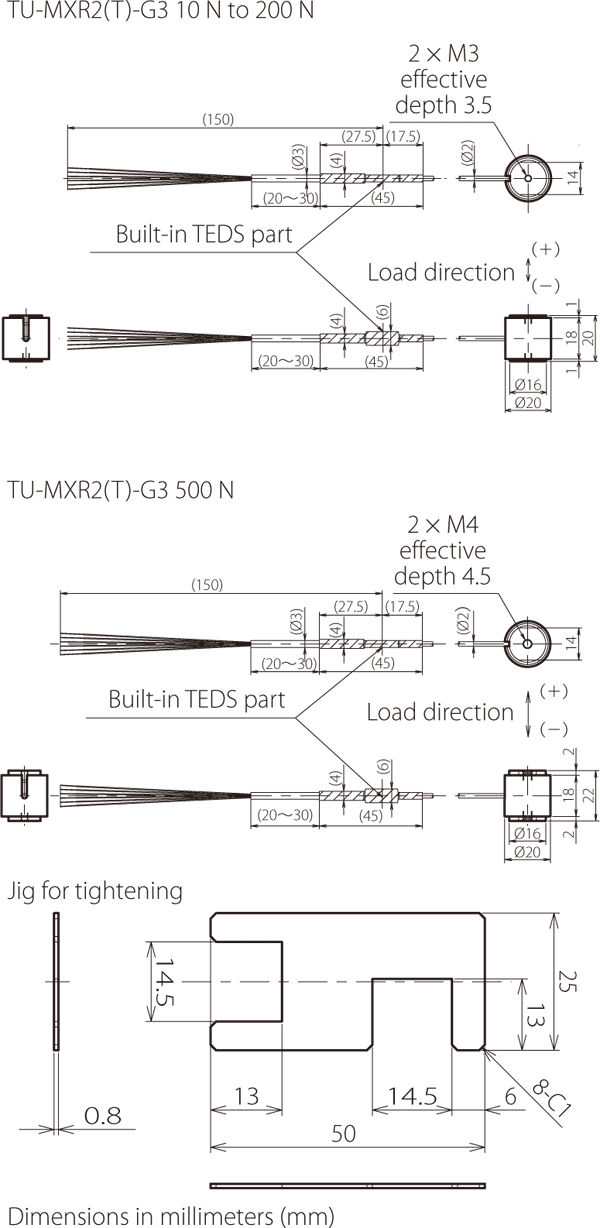

Outline Dimensions
