IEPE (integral electronic piezoelectric) Accelerometer
771
- Features
-
- Ultra-compact and lightweight
- Measurement Range (m/s2) :±5,000
- Includes a dedicated cable (cable length: 3m)
- Ideal for environmental stress testing
Specifications
| Model | 771 |
|---|---|
| Sensitivity (mV/m/s2) | 1.0±10% |
| Transverse Sensitivity (max) | < 5% |
| Noise Floor (max) | < 20μVrms |
| Operating Temperature range | -50 deg C to 120 deg C |
| Frequency Response (±3dB) | 1Hz to 13kHz |
| Resonance Frequency | > 50kHz |
| Measurement Range (m/s2) | ±5,000 |
| Max. operational shock (m/s2) | < 30,000 |
| Output Impedance | < 60ohm |
| Ground | Case ground |
| Cables | Proprietary cable |
| Connector | CZ694 |
| Material | Aluminum |
| Dimension | #phi6.4 × H3.6 |
| Weight | Approx. 0.6g (Accessorie:Removal tool,Conversion connector) |

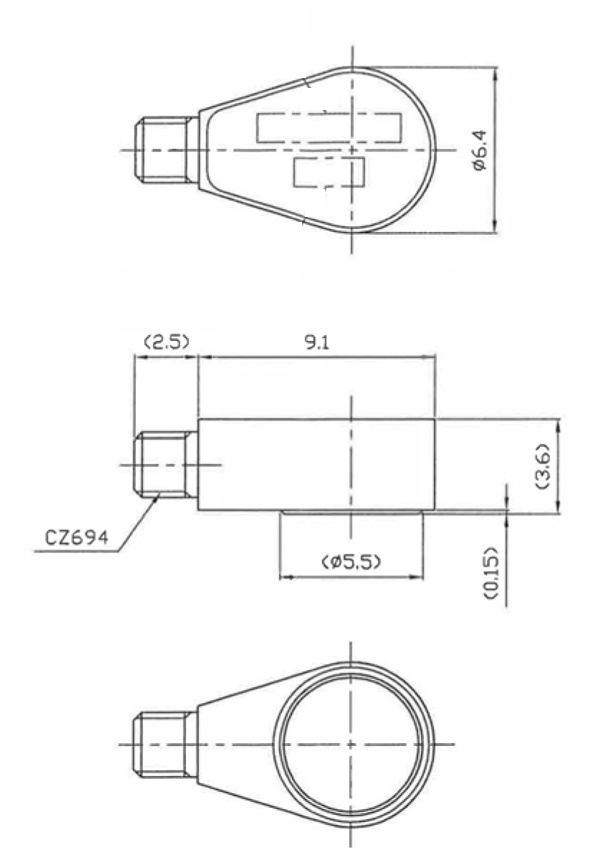

Outline Dimensions
Accessories

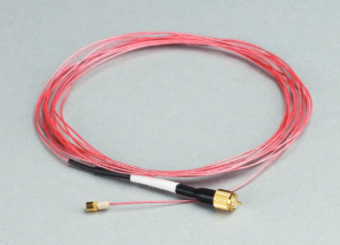

Dedicated Cable

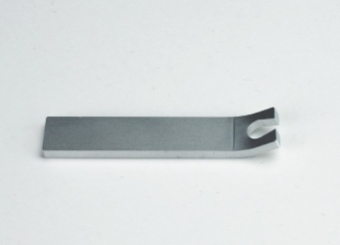

Jig for tightening
