Compression Load Cell TC series
TC-WLD(T)☐☐kN-G
TEDS RoHS
Load cell for spot welding pressure control.
Made in Japan
- Features
- Compact, lightweight
Specifications
| Model | Unit | Rated Capacity (R.C.) | ||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| TC-WLD(T)☐☐kN-G | N | 5 | 10 | 20 | 50 | 100 | 200 | 500 | ||||||
| kN | 1 | 2 | 3 | 5 | 10 | 20 | 40 | 50 | 100 | 200 | 500 | 1000 | ||
| Model | TC-WLD(T)☐☐kN-G |
|---|---|
| Rated Capacity(R.C) | 10kN, 20kN |
| Safe Overload Rating | 120%R.C. |
| Rated Output (R.O.) | 1mV/V ±50% (10kN) 1.5mV/V ±50% (20kN) |
| Linearity | 1.0%R.O. (10kN) 2.0%R.O. (20kN) |
| Hysteresis | 1%R.O. |
| Repeatability | 1%R.O. |
| Zero Balance | ±10%R.O. |
| Safe Excitation Voltage | 7V |
| Input Terminal Resistance | 350±5% |
| Output Terminal Resistance | 350±5% |
| Insulation Resistance | 1000MΩ or more (DC50V) |
| Compensated Temperature Range | 0℃ - 50℃ |
| Permissible Temperature Range | -10℃ - 60℃ |
| Temperature Effect on Zero Balance | 0.5%R.O./10℃ |
| Temperature Effect on Output | 0.5%R.C./10℃ |
| TEDS | Built in the load cell |
| NDIS Standard Receptacle | PRC03-21A10-7F |
| Supplied cable | φ6 6-core shielded cable 1m with plug connector at both ends Connector:PRC03-12A10-7M |
*The specifications and appearance are subject to change without notice for improvement.

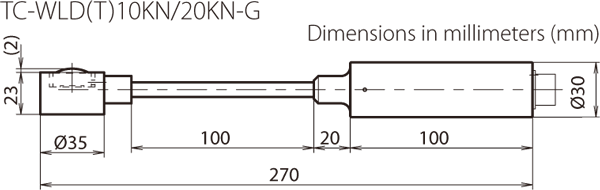

Outline Dimensions
*The specifications and appearance are subject to change without notice for improvement.
Case
- Ideal for measuring pressurizing force between electrodes for resistance welding machines,
such as in spot welding of factory automation and automobile production lines.

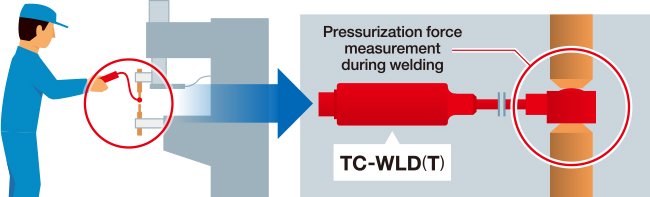

Use image
- By simultaneous use with portable digital indicator TD-01 Portable, on-site pressurization management can be done easily.
